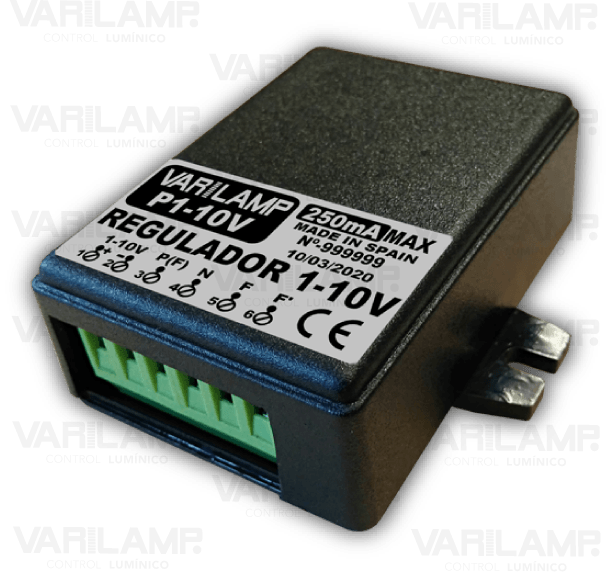

P1-10V
Regulator for 1-10V signal
0-10 V control signal generator forequipments with driver or reactance that require this type of signal.Operation by push buttons. Memory oflast power on and power on function sinceminimum holding down with light off. Optional PHASE output through 10A relay (F 'in the diagram). Supports up to approximately 200 devices (assuming a 1mA driver consumption).

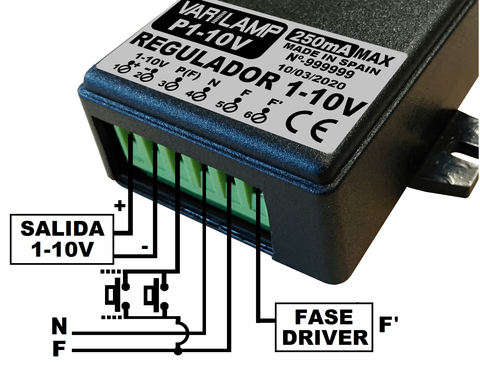

Installation scheme
In terminals 1 and 2 the control output 0 to 10V is connected, positive and negative respectively. This signal is connected to the lamp driver to be dimmed. Terminal 3 connects the turn of the button / es, which comes from PHASE. Terminal 4 connects the Neutral and terminal 5 PHASE. Terminal 6 provides a PHASE output (F ') that is disconnected through the relay when regulating at 0V. If used, the PHASE of the lamp is not connected directly to the network, but to this terminal 6.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Phase output through relay
An optional circuit is provided for the phase cut when reaching 0V, which ensures complete shutdown of the lamps to be controlled. Said cut is made through a 10A relay. In this case the PHASE of the lamps is connected from terminal 6 (F '), instead of directly from the network. This controls the cut from the regulator itself.
Functioning
With a short press you turn the light on or off progressively.
Holding down the regulation takes place, stopping when releasing the button.
Up to 250mA 0-10V output
The maximum consumption that is assumed per driver is 1mA, so you can talk about the possibility of controlling up to approximately 200 devices without any problem.
