TL5

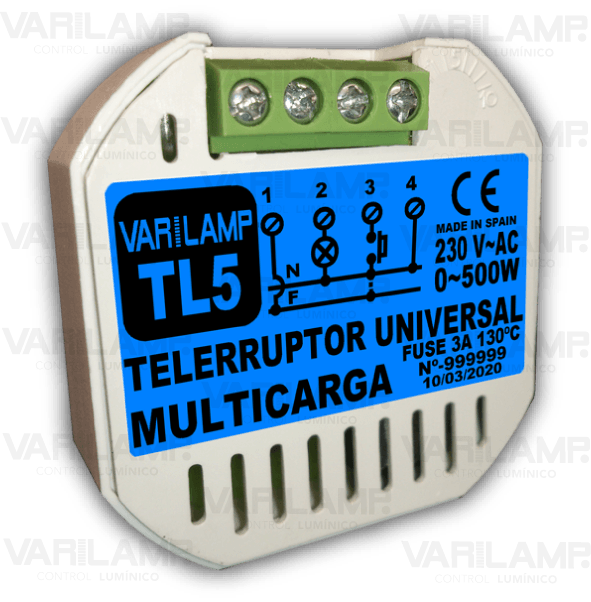

Universal remote control for any type of load at 230VAC
Tele-switch (bistable push-button switch) that adapts push-button installations to all types of loads. Supports push button input from
F or N interchangeably.
COMPATIBLE WITH ANY CHARGE TYPE (230VAC ~ 50Hz)
Installation scheme
4-wire installation. Connect Phase to terminal 1. Terminal 2 connects the load loop, which comes from Neutral. The turn of the push-button / s is connected to terminal 3, and may come from Phase or from Neutral indistinctly. Finally at terminal 4 connect Neutral. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
Push button input from Phase or Neutral
It recognizes the input of the pushbutton from Phase or Neutral indistinctly, which facilitates installation if the pushbutton had already come from Phase in the previous installation, for example having a regulator.
Functioning
Each press connects and disconnects the load. Avoid commutations and crossings.
Up to 500W of load
Supports de 0W to 500W (R). All kinds of loads. Compatible with any type of load, small contactors, relays, etc. MULTILOAD.
