TL20 DIN
Universal DIN rail remote control for any type of load at 230VAC
Remote control switch (bistable push-button switch) on DIN rail for all types of loads. Adapt pushbutton installations to all types of loads. Push button input from Phase or Neutral indistinctly. Completely silent.Relay output.
COMPATIBLE WITH ANY CHARGE TYPE (230VAC ~ 50Hz)
Installation scheme

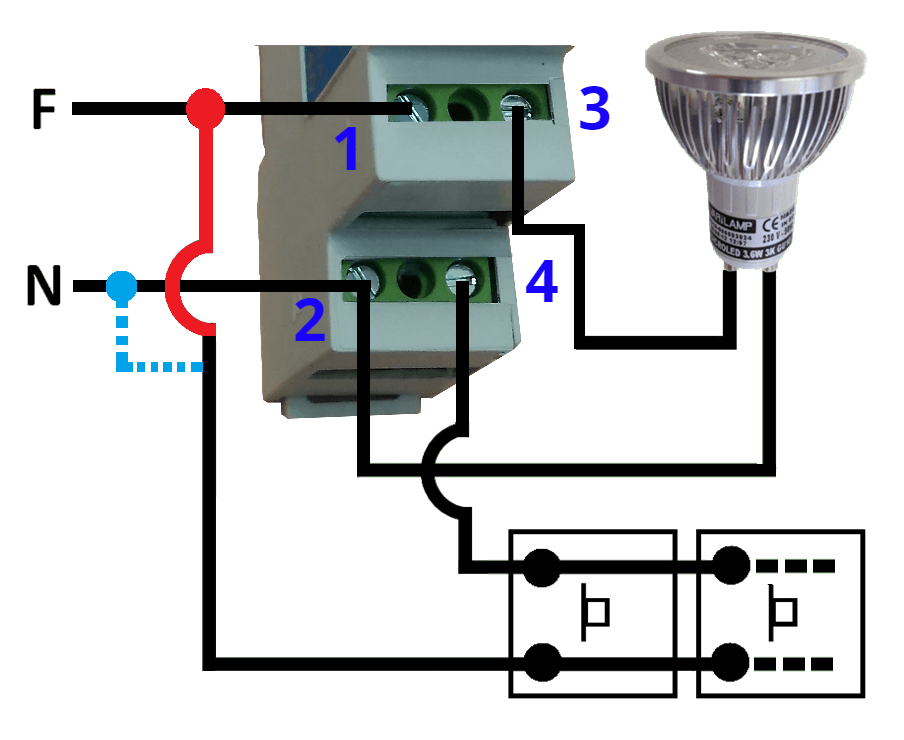

4-wire installation. The terminal numbers are printed on the plastic next to each one. Connect Phase to terminal 1 and Neutral to terminal 2. In terminal 3 connect the load loop, which comes from Neutral. Finally, at terminal 4, connect the turn of the push-button / s, which may come from the Phase or from the Neutral, indistinctly (it is represented with a discontinuous blue line). Up to 10 pushbuttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Push button input from Phase or Neither
It recognizes the pushbutton input from Phase or Neutral interchangeably. Supports up to 10 unlimited push buttons with indicator light without it.
Functioning
Each press connects and disconnects the load. Avoid commutations and crossings.
Up to 2000W of load
Supports de 0W to 2000W (R). 10A relay. All kinds of loads. Compatible with any type of load, small contactors, relays, etc. MULTILOAD.
