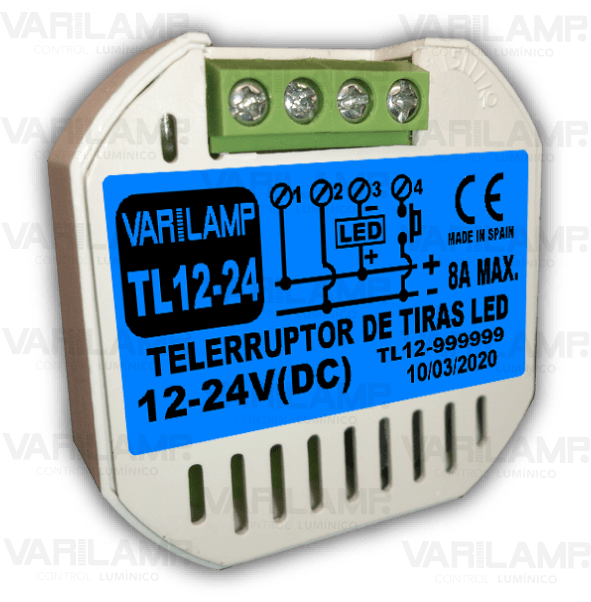

TL12-24
Push button remote control for LED strips from 12V to 24VDC
Push-button remote control for LED strips from 12V to 24V DC. Ideal for LED strips or lamps from 12V to 24V in direct current or for installations where the installation is at 12VDC, such as on boats, motor vehicles, etc. It supports an unlimited number of buttons connected in parallel (without indicator light).
COMPATIBLE WITH ANY LED FROM 12VDC TO 24VDC

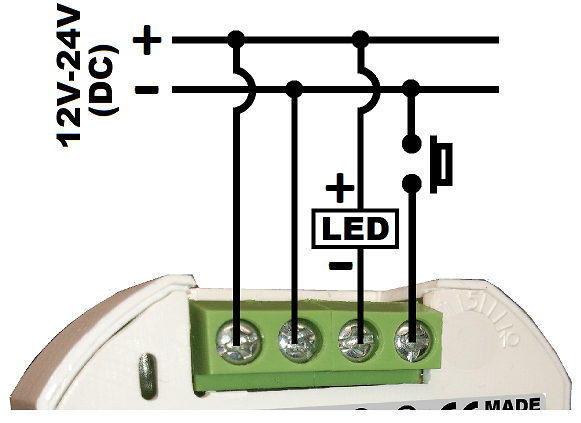

Installation scheme
4-wire installation. Connect Positive of the source to terminal 1 and Negative of the source to terminal 2. In terminal 3 connect the negative of the LED strip or lamp and the positive of the LED directly to the positive of the source. Finally, at terminal 4 connect one of the poles of the push-button / s, whose opposite pole comes from the negative of the source.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Low voltage remote control
For installations where 230V AC voltage is not available, such as boats, cars, etc. In LED strip installations, it is installed between power supply and LEDs.
Functioning
Each press connects and disconnects the load.
Up to 8A of charge
Supports up to a maximum of 8A of charge. If the installation is at 12VDC it would be a maximum of 96W. On the other hand, if the installation is at 24VDC, the maximum is 192W of load.
