T1
Wall-mounted push button timer
3-wire SAFETY timer with push buttons,
Mainly suitable for filament bulbs. Two operating modes: A) With progressive on and off in halogen or incandescent mode and B) with instant on and off, for fluorescence, low consumption and some LEDs.Completely silent. Adjustable from 3 seconds to 10 minutes ( 15s of progressive shutdownthat avoids being suddenly in the dark). 1 hour cleaning light function. Restartable.
COMPATIBLE WITH HALOGENS, INCANDESCENCE AND FLUORESCENCE, LOW CONSUMPTION.

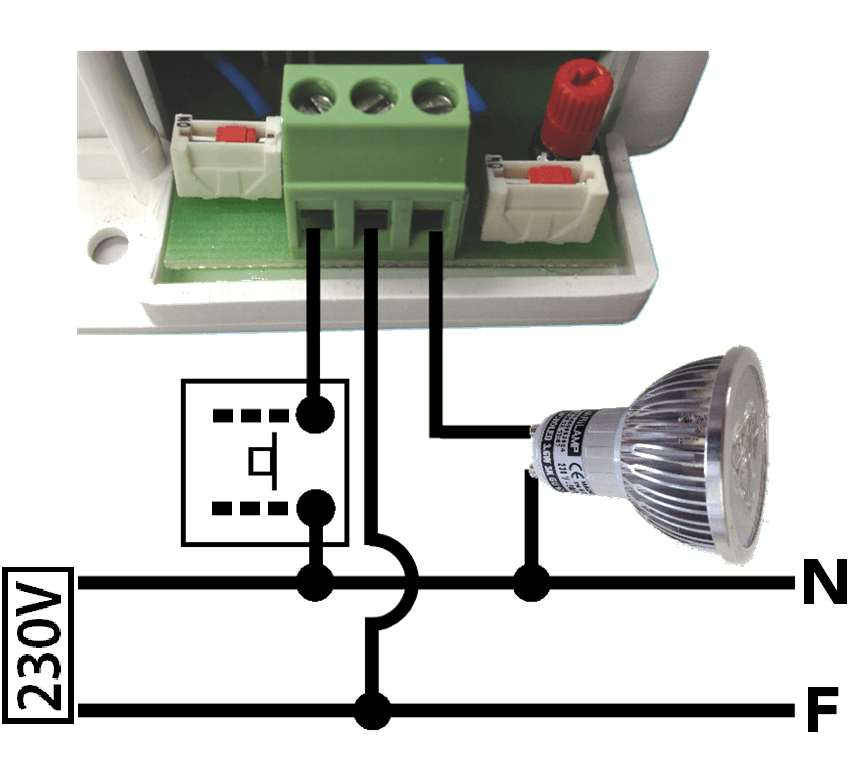

Installation scheme
3-wire installation. It has the same scheme as the main mechanical timers, then its connection has the same order. Even its holes match for wall mounting. At terminal 1 connect the turn of the button / es, which comes from Neutral. At terminal 2 connect Phase. In terminal 3 connect the load turn, which comes from Neutral. Up to 10 pushbuttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
SEMI compatible con LED
3-wire installation. If our ADA LED
In parallel with the load, it is compatible with most LEDs on the market. For these types of installations, we always recommend testing before installing. If not, we have other timers perfectly compatible with LEDs.
Functioning
By pressing the button, the lamp turns on and the timing set in its setting begins. Once finished and, if it is in halogen or incandescent mode, the progressive shutdown of 15 seconds occurs. To activate and deactivate the cleaning light, with the light on, press 3 times in less than 3 seconds. IMPORTANT: before installing the product, set its 2 internal selectors correctly. One for the voltage change: 125V or 220V and the other for the type of load: halogen-incandescent or fluorescence or LED
Up to 250W load
Supports up to 1500W of charge for halogens and incandescence. Up to 250W in fluorescence and compatible LEDs and up to 400W in low energy consumption.
