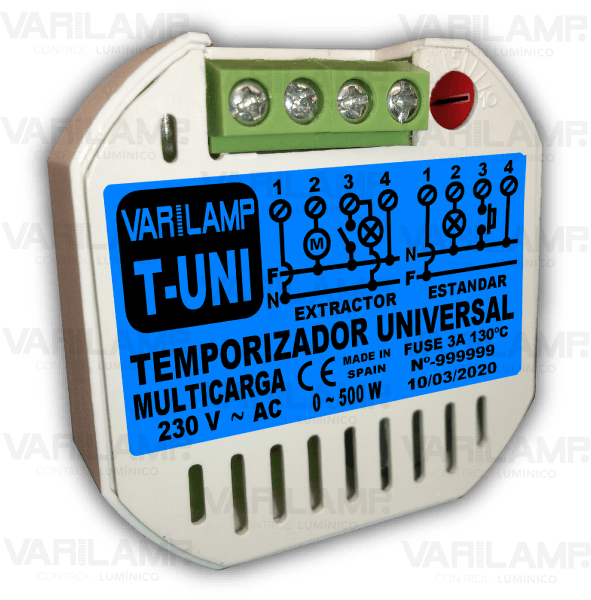

T-UNI
UNIVERSAL dual push-button timer for any type of load at 230VAC
DUAL UNIVERSAL timer for all types of loads. Two connection schemes: A) For general uses on stairs, garages, public toilets, etc. B) In bathrooms or toilets with extractor, to time it when the light is turned off with the switch. 1 hour cleaning light function. Adjustable from 3 seconds to 10 minutes.Suitable for all types of loadsat 230VAC. On and offinstant.Restartable
COMPATIBLE WITH ANY CHARGE TYPE (230VAC ~ 50Hz)

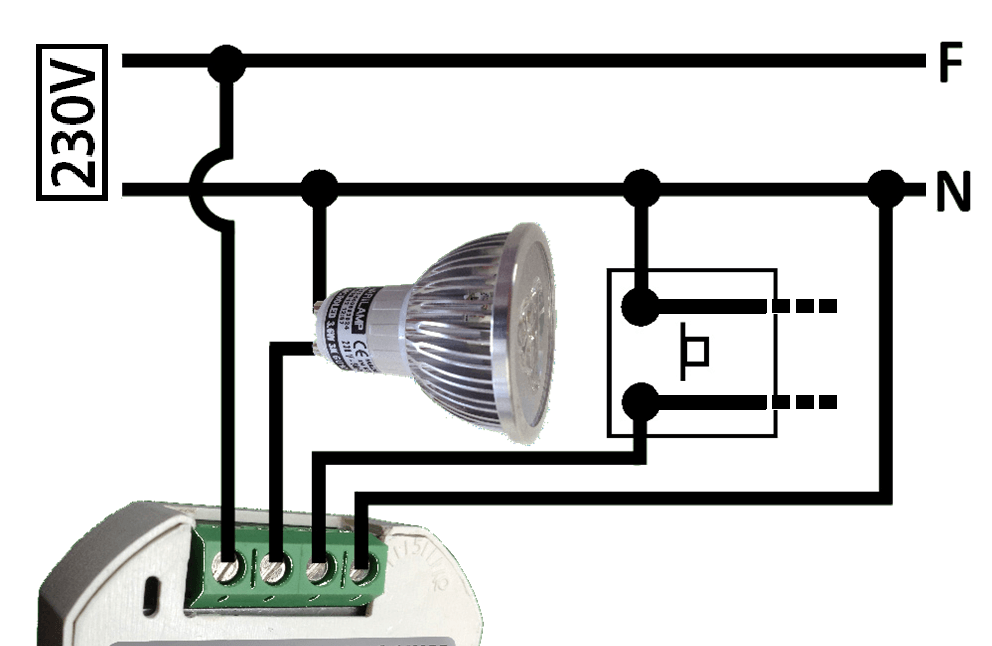

Schedule ofSTANDARD installation
4-wire installation. Connect Phase to terminal 1. The load loop is connected to terminal 2, which comes from Neutral. At terminal 3 connect the turn of the button / s, which also comes from Neutral. Finally at terminal 4 connect Neutral. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it.

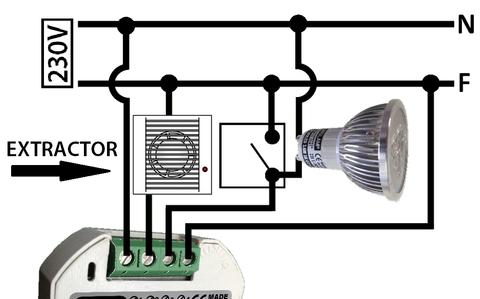

EXTRACTOR installation diagram
4-wire installation. Connect Neutral to terminal 1. At terminal 2 the extractor turn is connected, which comes from Phase. In terminal 3 connect the lamp turn, which comes from Neutral. In turn, by this turn, the switch is connected so that it can phase the lamp. Finally on terminal 4 connect Phase. With this scheme the lamp is switched on with the switch as usual, but when it is turned off, the extractor is timed for the time that has been set in the potentiometer.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
Double scheme. Two operating modes
Double scheme for two different uses, as a normal timer and to delay the exhaust switch-off in bathrooms and toilets.
Functioning
In normal mode, one press turns on the lamp and the timing set in its setting begins. In extractor mode, when you turn off the bathroom light with the switch, the extractor stays on for the set time. The cleaning light function is activated and deactivated with the light on and pressing 3 times in less than 3 seconds (a 1-second shutdown occurs, indicating that the mode has been entered).
Up to 500W of load
Supports de 0W to 500W (R). All kinds of loads. Compatible with any type of load, small contactors, relays, etc. MULTILOAD.
