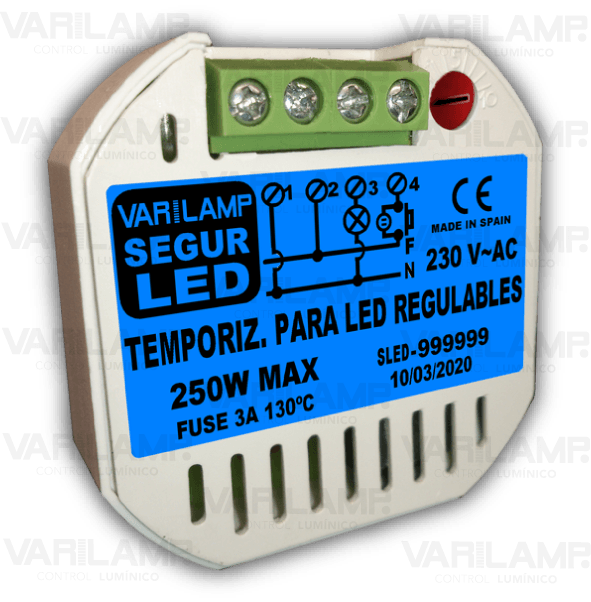

Safe LED 250
Push button safety timer for any dimmable LED
UNIVERSAL SAFETY timer apush buttons. Compatible with any dimmable LED. With progressive shutdown of 15 seconds, which avoids being in the dark suddenly. 1 hour cleaning light function. Restartable at any time. Courtesy progressive ignition. Adjustable from 3 seconds to 10 minutes.
100% COMPATIBLE WITH ANY ADJUSTABLE LED (230VAC ~ 50Hz)
Installation scheme
4-wire installation. Connect Neutral to terminal 1 and Phase to terminal 2. In terminal 3 connect the load return, which comes from Neutral. Finally, at terminal 4, connect the turn of the button / es that comes from the Phase. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Maximum compatibility with LEDs
Thanks to its innovative design and technology, it is 100% compatible with any dimmable LED. Important feature, because to make the progressive on and off, the LEDs need to be dimmable.
Functioning
With a press the lamp lights up and the calibrated timing starts in the setting. Once finished, progressive shutdown occurs. To activate and deactivate the cleaning light, it must be done with the light on and press 3 times in less than 3 seconds. A 1-second shutdown will occur and turn back on, indicating that the mode has been entered.
Up to 250W load
Supports up to 250W maximum load for LEDs, halogens, and incandescence. (IMPORTANT: 250W for LEDs if the power factor is close to 1. If, for example, the pdf is close to 0.5, the maximum power will be 125W).
