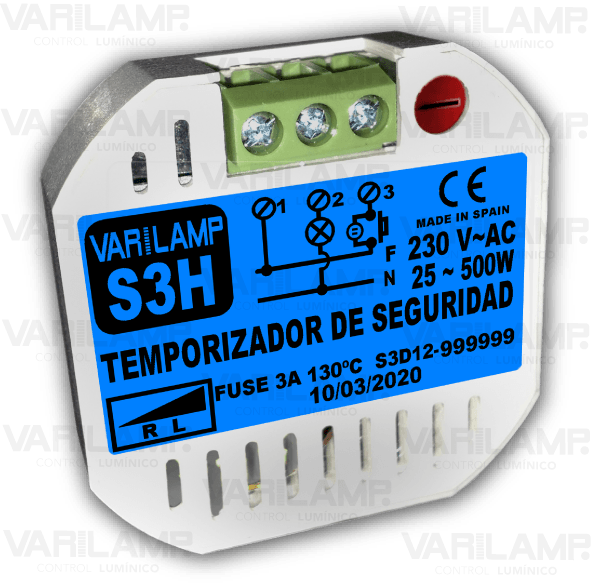

S3H
3-wire safety timer with 15-second progressive shutdown
3-wire safety timer with 15-second progressive shutdown, which prevents unexpected blackout. Suitable for filament bulbs. 1 hour cleaning light function. Restartable at any time. Super-saving function due to voluntary shutdown. Adjustable from 3 seconds to 10 minutes. It is activated when receiving power. Courtesy progressive ignition.
100% COMPATIBLE WITH ANY ADJUSTABLE LED
Installation scheme
3-wire installation. Connect Phase to terminal 1. At terminal 2 connect the load turn, which comes from Neutral. Finally at terminal 3 connect the turn of the push-button / s that comes from the Phase. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it. Some manufacturers and other documentation consider it to be a 2-wire installation, because the push-button cable is not taken into account.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
3-wire installation
Installation with only 3 wires in series with the load. Regulation to TRIAC. If our ADA LED
In parallel with the load, it is compatible with most LEDs on the market. For these types of installations, we always recommend testing before installing. If not, we have other timers perfectly compatible with LEDs.
Functioning
One press produces progressive ignition and starts the calibrated timing in the setting. Once finished, progressive shutdown occurs. To activate the cleaning light it must be done with the light on and press 3 times in less than 3 seconds. There will be a shutdown of 1 second and subsequent ignition ramp indicating that this mode has been entered. To cancel the cleaning light or activate the super-saving function at any time, just hold down for more than 2 seconds and the progressive shutdown will take place.
Up to 800W load
Supports up to 800W of maximum load for incandescent lamps and a maximum of 500W for halogen lamps.
