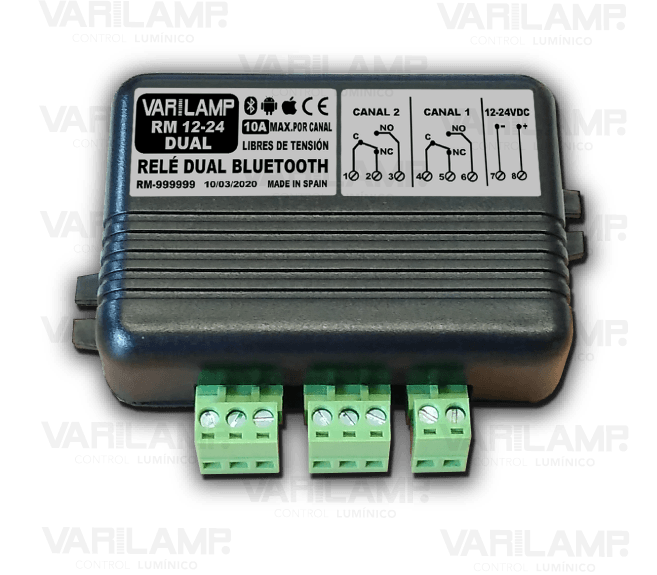

RM12-24V DUAL
Bluetooth remote control from smartphone or tablet
Bluetooth switch and / or button controllable from mobile devices, for lighting control, automatic doors, shutters, etc. 30m range. Double switched relay with voltage free contacts (TWO CHANNELS). Pluggable terminals. Four types of mechanism selectable from the APP. 230VAC supply. Compatible with Iphone and Android mobile devices. Own app available FREE in official stores.
COMPATIBLE WITH ANY TYPE OF LOAD
Installation scheme
Installation by pluggable terminals. The devices to be controlled will be connected to the three-pole terminals. The 12VDC to 24VDC supply is connected to the two-pole terminal with positive on the left and negative on the right. Each channel has a relay with voltage-free contacts. From left to right, the first pole is the common of the relay, the second is the normally closed contact and the third is the normally open. Depending on the use to which it is intended, it will have to be connected in one way or another, taking into account that in the APP different key modes can be selected and as a button or switch.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Easy home automation - WITHOUT INTERNET
Thanks to its versatility, it can be associated with pulsation regulators or as a switch for many devices. Two channels that allow the simultaneous control of two ignitions, two regulators, blinds and awnings, automatic doors, etc. Voltage-free contacts in the switched relays, to use the most convenient: NC contact (normally closed) or NO (normally open).
Functioning
Once connected to the “RM CONTROL DUAL” APP, select the operating mode as a button or as a switch and the type of key desired (double key or three-position key). Pressing the key causes the voltage-free contacts to close or open. Smartphone connection instructions within the application.
Up to 2000W of load per channel
Supports 0W to 2000W (R). 10A relays. All kinds of loads. Compatible with any type of load. MULTILOAD.
