R12-24
Potentiometer regulator for LED strips from 12V to 24V (DC)
Regulator with analog dimming control for LEDs from 12VDC to 24VDC. It works as a permanent dimmer according to the level of regulation established in its setting, simply by feeding it. Reduces electricity consumption.Regulation range from 1% to 99%, equivalent to the same percentage of energy savings.
COMPATIBLE WITH ANY LED FROM 12VDC TO 24VDC

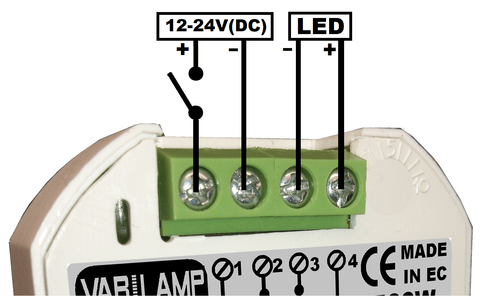

Installation scheme
Simple 4-wire installation, two input and two output. Connect power after switch to terminals 1 and 2 with positive to terminal 1 and negative to terminal 2. In terminals 3 and 4 the LED strip or lamp is connected with negative at terminal 3 and positive at terminal 4.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
PWM regulation
Thanks to its technology, it is compatible with any LED powered by direct current from 12V to 24V. Installs between power supply and LEDs. Supports any power supply, even without being adjustable
Functioning
Pressing the switch turns on the lamp at the light level set in the setting. To adjust the level, simply rotate the potentiometer one way or the other.
Up to 8A of charge
Supports up to a maximum of 8A of charge. If the installation is at 12VDC it would be a maximum of 96W. On the other hand, if the installation is at 24VDC, the maximum is 192W of load. If you need to regulate a larger load, contact us.
