R-300 DIN
UNIVERSAL regulator with potentiometer for any dimmable LED (DIN)
UNIVERSAL dimmer for LEDs on DIN rail, with analog dimming control. It works as a permanent dimmer according to the level of regulation established in its setting, simply by feeding it. Reduces electricity consumption. Compatible with any dimmable LEDs, halogen and incandescent lamps.
100% COMPATIBLE WITH ANY ADJUSTABLE LED (230VAC ~ 50Hz)

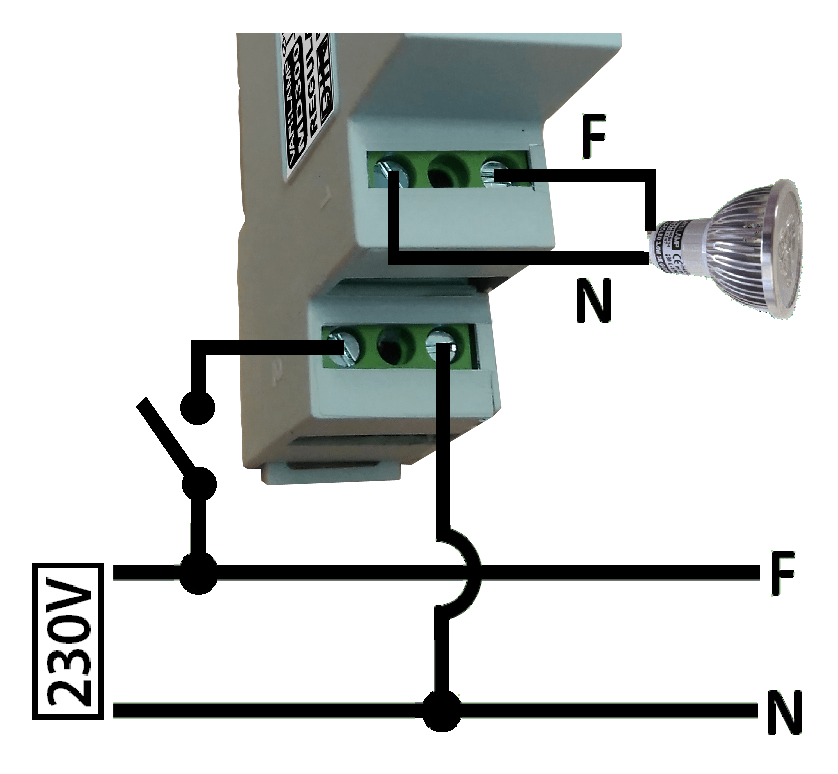

Installation scheme
Simple 4-wire installation, two input and two output. Connect power after the switch to terminals 2 and 4 according to the attached diagram. In terminals 1 and 3 the lamp or set of lamps is connected in parallel.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Maximum compatibility with LEDs
Thanks to its innovative design and technology, it is 100% compatible with any dimmable LED.
Minimum regulation adjustment
Pressing the switch turns on the lamp at the light level set in the setting. To adjust the level, simply turn the potentiometer one way or the other with the light on.
Up to 300W load
Supports up to a maximum of 300W (pfd = 1) maximum load for LEDs, halogens and incandescence.(IMPORTANT: 300W for LEDs with power factor = 1. If for example the pdf is = 0.5, the maximum power will be 150W). If you need to regulate a larger load, contact us.
