P8M
Push button regulator for halogen and incandescence
Push-button regulator with memory that varies brightness and power consumption. Regulation range from 5% to 90%, equivalent to the same percentage of energy savings. Last power up memory. Ignition function from minimum holding down with light off. Installation with only 3 wires.
INCANDESCENCE AND HALOGEN COMPATIBLE (230VAC ~ 50Hz)

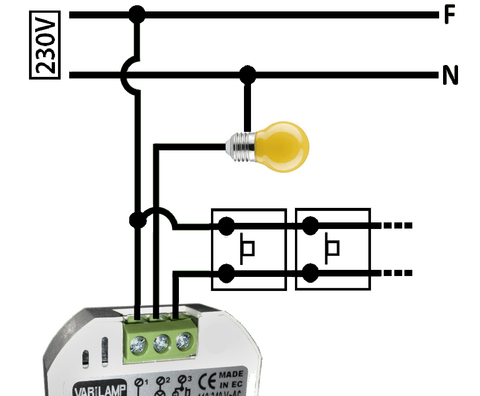

Installation scheme
3-wire installation. Connect Phase to terminal 1. At terminal 2 connect the load turn, which comes from Neutral. Finally at terminal 3 connect the turn of the push-button / s that comes from the Phase. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
3-wire installation
Installation with only 3 wires in series with the load. Regulation to TRIAC.
Functioning
With a short press you turn the light on or off progressively.
Holding down the regulation takes place, stopping when releasing the button.
Up to 800W load
Supports up to 800W of maximum load for incandescent lamps and a maximum of 500W for halogen lamps.
