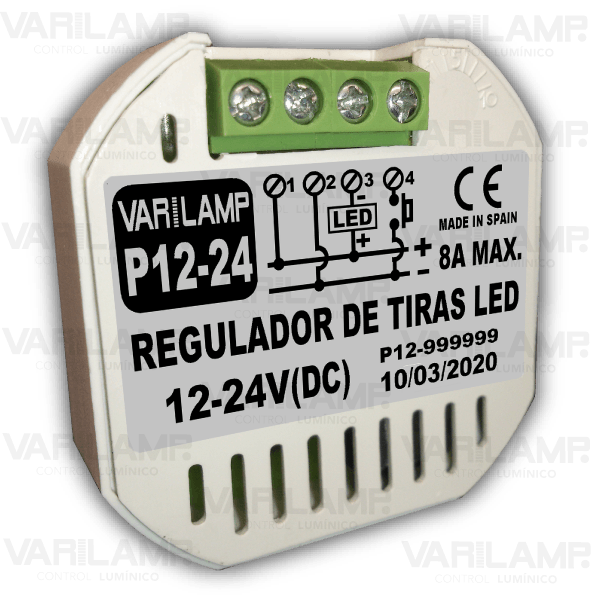

P12-24
Regulator apulsadores for LED Strips from 12V to 24V (DC)
LED push button regulator with 12VDC to 24VDC power supply, which varies brightness and power consumption. Regulation range from 5% to 100%, equivalent to the same percentage of energy savings. Last power-on memory and minimum power-on function by pressing and holding with light off. Ideal for 12V or 24V DC strips or LED lamps. It supports an unlimited number of buttons connected in parallel (without indicator light).
COMPATIBLE WITH ANY LED FROM 12VDC TO 24VDC

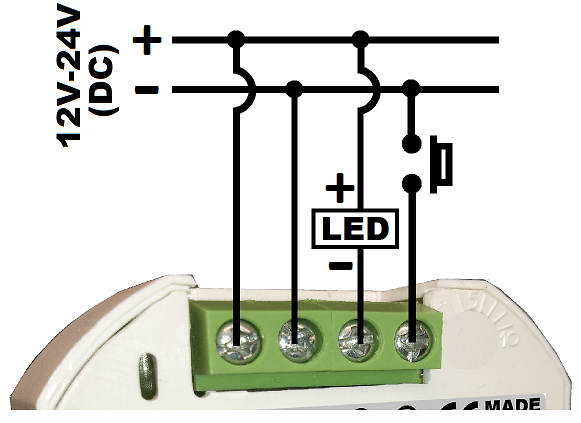

Installation scheme
4-wire installation. Connect Positive of the source to terminal 1 and Negative of the source to terminal 2. In terminal 3 connect the negative of the LED strip or lamp and the positive of the LED directly to the positive of the source. Finally, at terminal 4 connect one of the poles of the push-button / s, whose opposite pole comes from the negative of the source.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
PWM regulation
Thanks to its technology, it is compatible with any LED powered by direct current from 12V to 24V. Installs between power supply and LEDs. Supports any power supply, even without being adjustable
Functioning
With short presses the progressive on and off occurs. By continuously pressing, regulation occurs, stopping when the pusher is released at the desired lighting level.
Up to 8A of charge
Supports up to a maximum of 8A of charge. If the installation is at 12VDC it would be a maximum of 96W. On the other hand, if the installation is at 24VDC, the maximum is 192W of load. If you need to regulate a higher load, click here.
