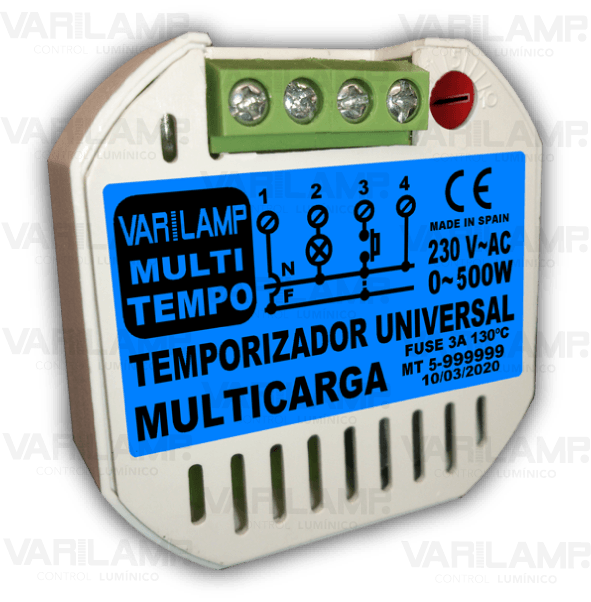

Multi Tempo 500
UNIVERSAL timer with buttons or switches for any type of load at 230VAC
UNIVERSAL timer for all types of loads that works with push buttonsor switches. Supports push button input from Phase or Neutral indistinctly. It is activated (timed) when receiving power. Adjustable from 0.5 seconds to 10 minutes. Restartable.On and offinstant.
COMPATIBLE WITH ANY CHARGE TYPE (230VAC ~ 50Hz)

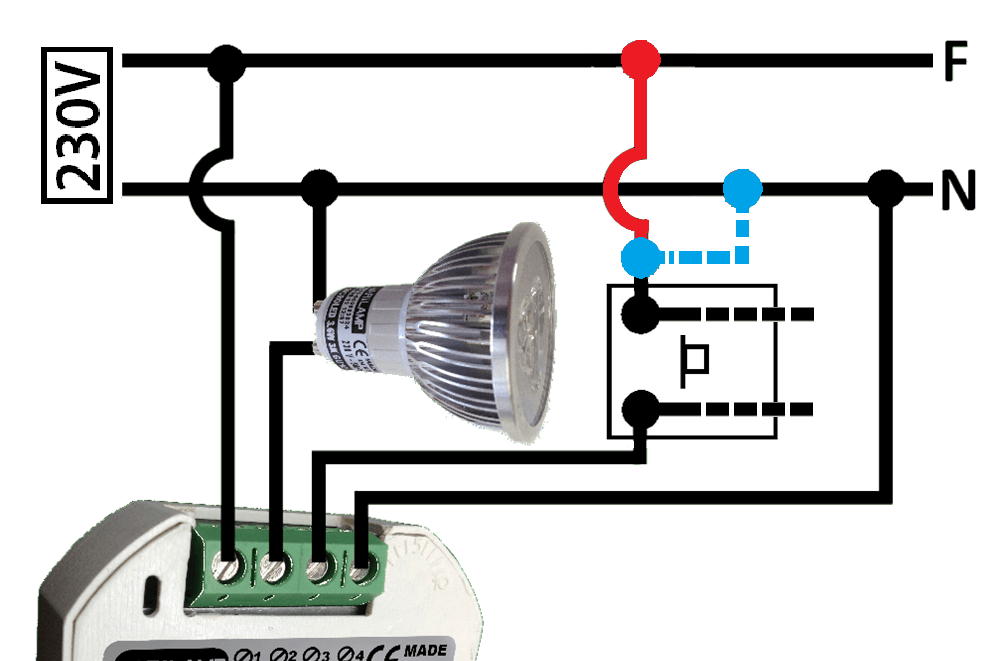

Installation scheme
4-wire installation. Connect Phase to terminal 1. Terminal 2 connects the load loop, which comes from Neutral. The turn of the push-button / s is connected to terminal 3, and may come from Phase or from Neutral indistinctly. Finally at terminal 4 connect Neutral. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it. In the case of installing switches, it supports switching and crossovers. Do not mix push buttons and switches connected to the same timer.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Push button or switch input from Phase or Neutral
Works with push buttons or switches. It recognizes the pushbutton input from Phase or Neutral interchangeably.
Functioning
When the push-button is pressed or with each change of state of a switch, the lamp turns on and the timing established in its setting begins. Also, every time it feeds, it does a timing.
Up to 500W of load
Supports de 0W to 500W (R). All kinds of loads. Compatible with any type of load, small contactors, relays, etc. MULTILOAD.
