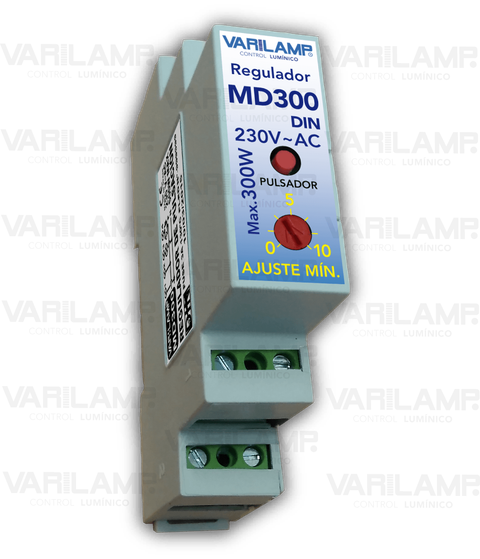

MD 300 DIN
UNIVERSAL dimmer switch for any dimmable LED (DIN)
UNIVERSAL DIN rail regulator with memory buttons, which varies brightness and electricity consumption. Regulation range from 1% to 100%, equivalent to the same percentage of energy savings. It has memory of last ignition even after power cut, and minimum ignition function by keeping pressed with light off. Minimum level adjustment that ensures maximum compatibility with any dimmable LED lamp. It stops to the maximum and minimum when regulating.Comfortable front button to regulate from the electrical panel.
100% COMPATIBLE WITH ANY ADJUSTABLE LED (230VAC ~ 50Hz)

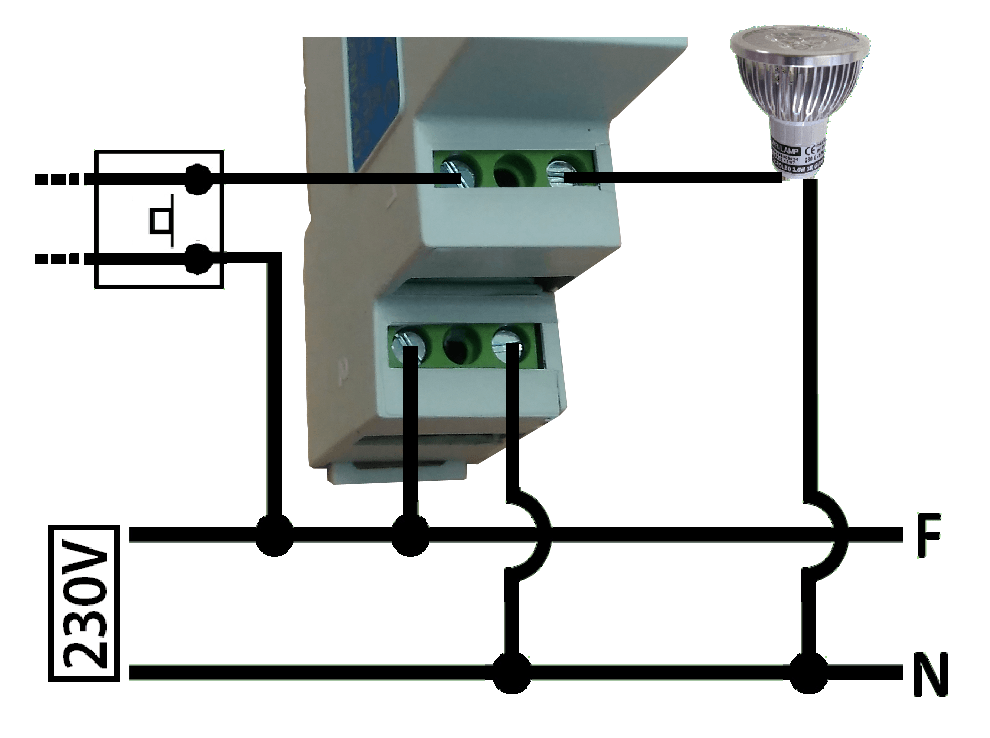

Installation scheme
4-wire installation. Connect Neutral to terminal 4 and Phase to terminal 2. In terminal 3 connect the load return, which comes from Neutral. Finally, at terminal 1, connect the turn of the button / es that comes from the Phase. Up to 5 push buttons can be connected in parallel with light indicator and unlimited without it.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Maximum compatibility with LEDs
Thanks to its innovative design and technology, it is 100% compatible with any dimmable LED.
Minimum regulation adjustment
With the manual adjustment potentiometer, you can select the lowest level of regulation that, depending on the type of lamp, must be higher or lower. This prevents the lamp from turning off completely or from lighting up too much when it is dimmed to a minimum.
Up to 300W load
Supports up to a maximum of 300W (pfd = 1) maximum load for LEDs, halogens and incandescence.(IMPORTANT: 300W for LEDs with power factor = 1. If for example the pdf is = 0.5, the maximum power will be 150W). If you need to regulate a larger load, contact us.
