Magic LED 250
UNIVERSAL dimmer to SWITCHES for any dimmable LED
UNIVERSAL regulator that works with the same switches, switches and crossings of any home. Compatible with any dimmable LED. Easy and intuitive operation by changing the state of the switch (PATENTED SYSTEM).Regulation range from 1% to 100%, equivalent to the same percentage of energy savings. Minimum level adjustment that ensures maximum compatibility with any dimmable LED lamp.
100% COMPATIBLE WITH ANY ADJUSTABLE LED (230VAC ~ 50Hz)

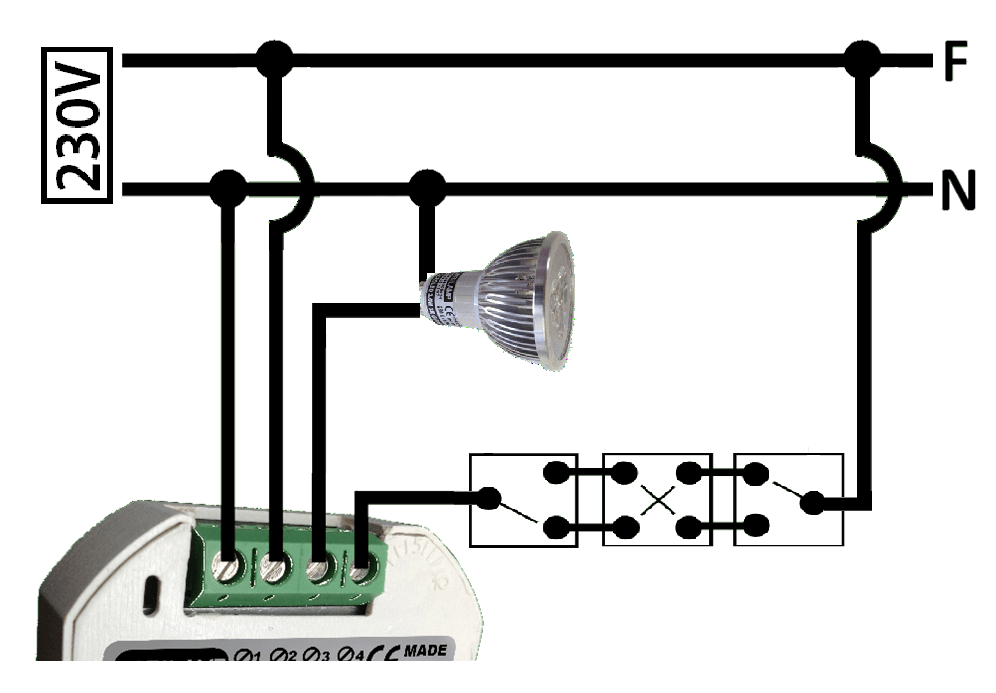

Installation scheme
4-wire installation. Connect Neutral to terminal 1 and Phase to terminal 2. In terminal 3 connect the load return, which comes from Neutral. Finally at terminal 4 connect the switch turn, commutated or crossovers that comes from Phase.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Maximum compatibility with LEDs
Thanks to its innovative design and technology, it is 100% compatible with any dimmable LED.
Functioning
Pressing the switch produces a light rise from minimum to maximum of about 6 seconds. To regulate, during said ascent, change the state of the switch to the desired level. Once switched on, when the switch state changes again, the progressive switch-off occurs. PATENTED SYSTEM.
Minimum regulation adjustment
With the manual adjustment potentiometer, you can select the lowest level of regulation that, depending on the type of lamp, must be higher or lower. If the lamp takes time to turn on at the minimum potentiometer level (due to the differences between different LED lamps), it is recommended to raise it until you see a suitable minimum.
Up to 250W load
Supports up to a maximum of 250W (pfd = 1) maximum load for LEDs, halogens and incandescence.(IMPORTANT: 250W for LEDs with power factor = 1. If for example the pdf is = 0.5, the maximum power will be 125W). If you need to regulate a larger load, contact us.
