Magic 12-24
SWITCH Regulator for LED Strips from 12V to 24V (DC)
Regulator that works with the same switches, switches and crossings of any home, adapted to low voltage. Compatible with 12V or 24V direct current LED strips or lamps. Easy and intuitive operation by changing the state of the switch (PATENTED SYSTEM). Regulation range from 1% to 100%, equivalent to the same percentage of energy savings.
COMPATIBLE WITH ANY LED FROM 12VDC TO 24VDC

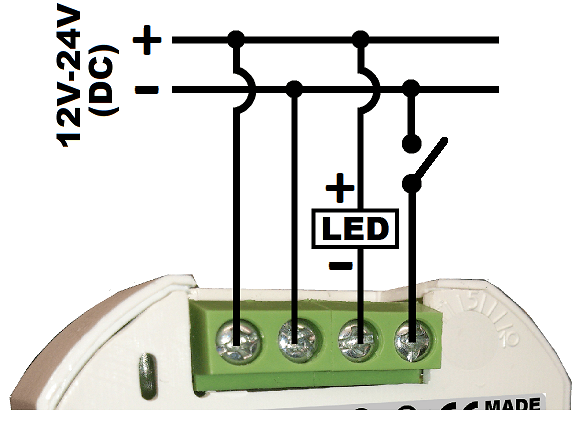

Installation scheme
4-wire installation. Connect Positive of the source to terminal 1 and Negative of the source to terminal 2. In terminal 3 connect the negative of the LED strip or lamp and the positive of the LED directly to the positive of the source. Finally at terminal 4 connect one of the poles of the switch, whose opposite pole comes from the negative of the source.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
PWM regulation
Thanks to its technology, it is compatible with any LED powered by direct current from 12V to 24V. Installs between power supply and LEDs. Supports any power supply, even without being adjustable
Functioning
Pressing the switch produces a light rise from minimum to maximum of about 6 seconds. To regulate, during said ascent, change the state of the switch to the desired level. Once switched on, when the switch state changes again, the progressive switch-off occurs. PATENTED SYSTEM.
Up to 8A of charge
Supports up to a maximum of 8A of charge. If the installation is at 12VDC it would be a maximum of 96W. On the other hand, if the installation is at 24VDC, the maximum is 192W of load. If you need to regulate a larger load, contact us.
