Inter 8
Regulator to SWITCHES for halogens and incandescence
Switch regulator that works withthe same switches, switches and / orcrosses of any home. The luminosity and the electrical consumption vary. Regulation range from 5% to 90%, equivalent to the same percentage of energy savings. Easy installation with only 2 wires. (PATENTED SYSTEM).
INCANDESCENCE AND HALOGEN COMPATIBLE (230VAC ~ 50Hz)

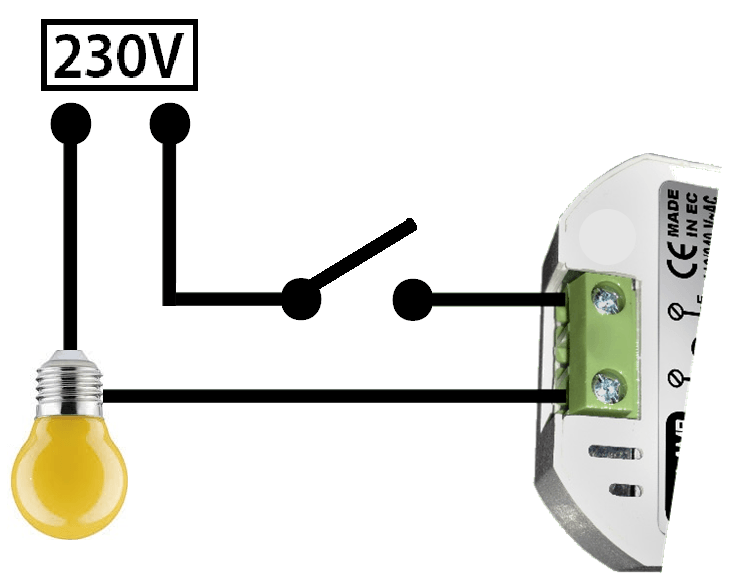

Installation scheme
Simple 2-wire installation. Insert it in the cable that goes from the switch to the lamp regardless of the polarity. In commutations and crosses, install in some of the commutators. Due to its simplicity, it can be installed in the switch box itself or in the rosette of the lamp to be regulated.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
Simple installation
Due to its versatility, it can be installed in any ceiling lamp, wall light or furniture with light. Install in the cables that go directly to the lamp, inserting it in any of the two wires regardless of the polarity.
Functioning
When the switch is switched on, there is a light rise from minimum to maximum of 3 seconds. During this and to regulate, quickly turn off and on at the desired light level.
Up to 800W load
Supports up to 800W of maximum load for incandescent lamps and a maximum of 500W for halogen lamps.
