Clic Clac LED 250
UNIVERSAL dimmer to SWITCHES for any dimmable LED
UNIVERSAL regulator (patented) that works withthe same switches, switches and / orcrosses of any home.Regulation range from 1% to 100%, equivalent to the same percentage of energy savings. Minimum level adjustment that ensures maximum compatibility with any dimmable LED lamp. Compatible withany dimmable LED. Easy installation.
100% COMPATIBLE WITH ANY ADJUSTABLE LED (230VAC ~ 50Hz)

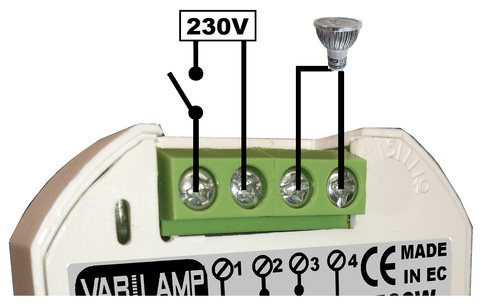

Installation scheme
Simple 4-wire installation, two input and two output. Connect power after switch to terminals 1 and 2 regardless of polarity. In terminals 3 and 4, the lamp or set of lamps is connected in parallel, regardless of polarity. Due to its simplicity and small size, it is possible to use it as a substitute for the connection tab of the lamp on the ceiling rosette.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows a brief presentation and demonstration of the product's operation, as well as an explanation of its installation.A video of its installation will be available shortly.
Maximum compatibility with LEDs
Thanks to its innovative design and technology, it is 100% compatible with any dimmable LED.
Functioning
Pressing the switch produces a light rise of 5 seconds. To regulate, during said ascent, quickly turn off and on at the desired level. Once turned on, when the switch state changes again, it turns off. PATENTED SYSTEM.
Minimum regulation adjustment
With the manual adjustment potentiometer, you can select the lowest level of regulation that, depending on the type of lamp, must be higher or lower. If the lamp takes time to turn on at the minimum potentiometer level (due to the differences between different LED lamps), it is recommended to raise it until you see a suitable minimum.
Up to 250W load
Supports up to a maximum of 250W (pfd = 1) maximum load for LEDs, halogens and incandescence.(IMPORTANT: 250W for LEDs with power factor = 1. If for example the pdf is = 0.5, the maximum power will be 125W). If you need to regulate a larger load, contact us.
