A10
A10 double pole insulator
Double pole isolator that COMPLETELY PREVENTS some LED lamps (fluorine, low consumption, etc.) from turning on a little when switched off from the switch.
EXCLUSIVELY COMPATIBLE WITH SWITCHES WITH OR WITHOUT PILOT AND MULTILOAD TIMERS THAT DO NOT REQUIRE A MINIMUM LOAD

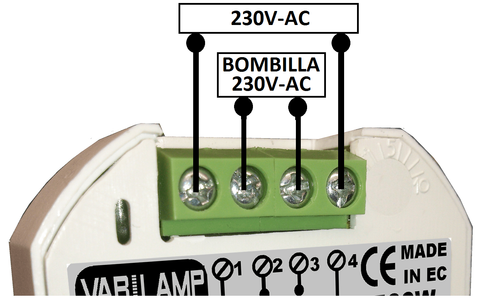

Installation scheme
Simple 4-wire installation, two input and two output. Connect power after switch to terminals 1 and 4 regardless of polarity. In terminals 2 and 3 the lamp or set of lamps is connected in parallel, also regardless of polarity. Due to its simplicity and small size, it is possible to use it as a substitute for the connection tab of the lamp on the ceiling rosette.
Download the product data sheet
For more details of characteristics, operation, control, installation diagram, admissible loads, maximum admissible power, etc. You can view and download the product data sheet by clicking on the button below.
Multimedia
The video shows an example of assembly in a conventional installation, carried out by one of our technicians. Likewise, the basic operation of the product is shown.
100% effectiveness
Thanks to its ingenious design, it COMPLETELY PREVENTS the problems of unwanted ignitions due to residual currents, for example when there are neons in the installation mechanisms.
recommendations
It is installed by inserting it before the first bulb. One pill per room, zone or electrical circuit. In communities it will be necessary to install an A10 per floor (if all the lamps are on the same circuit).
Up to 2000W of load
Supports 0W to 2000W (R) load. 10A relay. For all types of loads at 230VAC. MULTICARGA.
